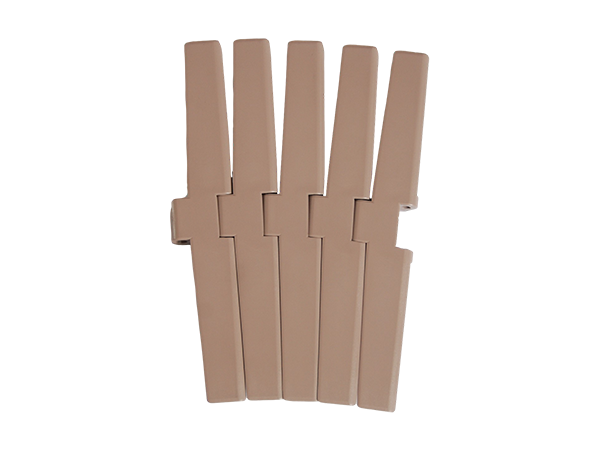

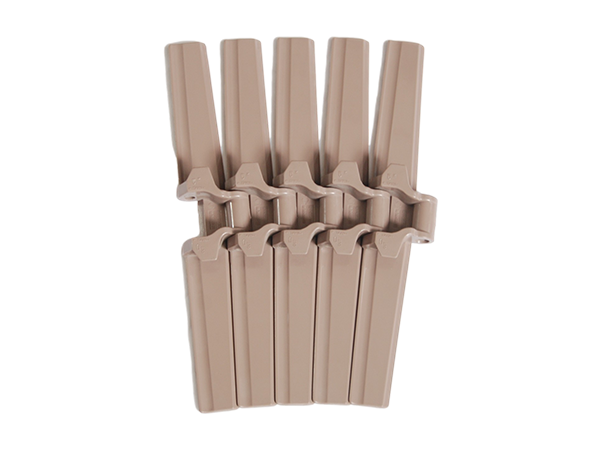

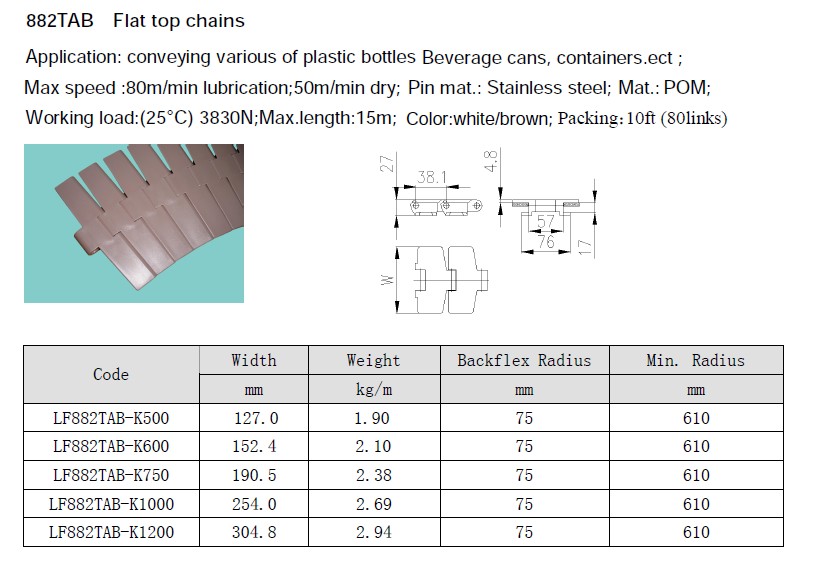

LF882TAB Sideflex flat top chains

LF882TAB Sideflex flat top chains

The  882 TAB chain is a stronger version of the 880 TAB-series and it is available in widths up to 304.8 mm (12.00 in.). The high load capacity makes the chain suitable for conveying heavier and larger items over longer distances than the 880 chain.The plate thickness is 4.8 mm (0.19 in.)link the chains LF821 ,these two chains are often used together.

Plate mat.:POM/PP; Pin mat.:stainless steel

Max.speed: 80m/min lubrication; 50m/min dry;Max.length:15m;

Working load:38300N Color:white/brown; Packing unit:10ft(80links)


0.00
0.00

Product Description

The  882 TAB chain is a stronger version of the 880 TAB-series and it is available in widths up to 304.8 mm (12.00 in.). The high load capacity makes the chain suitable for conveying heavier and larger items over longer distances than the 880 chain.The plate thickness is 4.8 mm (0.19 in.)link the chains LF821 ,these two chains are often used together.

Plate mat.:POM/PP; Pin mat.:stainless steel

Max.speed: 80m/min lubrication; 50m/min dry;Max.length:15m;

Working load:38300N Color:white/brown; Packing unit:10ft(80links)


Product Recommend



Materials Index

POM – Polyoxymethylene

POM is a thermoplastic material with very good mechanical and thermal properties. The material can also be characterized

by great strength, elasticity and dimensional stability. POM is resistant to a wide selection of chemicals. POM has good

bearing qualities, low coefficient of friction and a good resistance to wear.

-40 to +90



PP - Polypropylene

Polypropylene is a thermoplastic material with very good chemical resistance properties. PP is an economical material for

applications with high temperatures.

+1 to +104



PE - Polyethylene

PE is used in low temperature applications and where high impact resistance is required.



-50 to +80



PA6 - Polyamide

Polyamide PA6 is a thermoplastic material. The combination of mechanical properties and chemical resistance makes this

material suitable for many situations. Polyamide has a high resistance to wear and dynamic loads. This material is primarily used
